Sintered metal fiber felt
The finest rating with the highest dirt holding
- Filtration rating: 0.5 – 50 μm
Industries
Sintered metal filter elements in Polymer / Chemical Fiber & Plastics
Melt filtration runs hot and it runs continuously, so dirt-holding capacity and re-generability decide the element before the purchase price does.
- Sintered metal fiber felt 0.5 – 50 μm
- Sintered wire mesh 1 – 200 μm
- Woven wire mesh 5 – 200 μm
Systems and Equipment
Where the element sits in the plant
The system this duty belongs to, and the filter positions we are asked to quote in it.
Systems and equipment Spinning and extrusion lines · extruders and spin packs
-
01
Polyester, viscose and spandex melt purification
-
02
Polymer melt filtration
-
03
Extruder screen changers
-
04
Spin-pack and spinneret protection
Media
The medium this duty points to
Sintered fiber felt 0.5 – 50 μm for melt duty · sintered wire mesh 1 – 200 μm where the element is backwashed · woven wire mesh for screen changers
Sintered wire mesh
Rigid duty: backwash, pulse-jet, high ΔP
- Filtration rating: 1 – 200 μm
Woven wire mesh
Coarser ratings, and the support layers of the two beside it
- Filtration rating: 5 – 200 μm
Elements
Elements we quote for this duty
The elements in the range whose own pages name this duty.
Sintered Wire Mesh

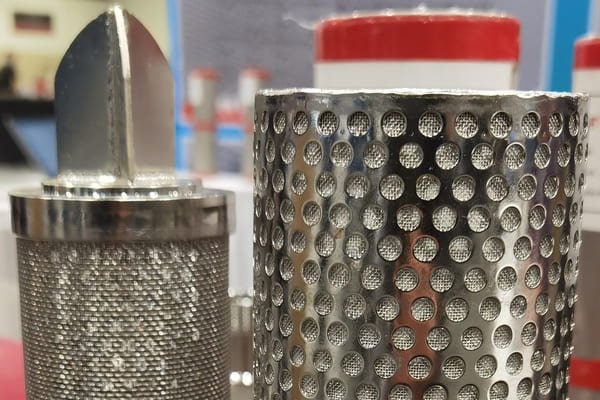

Custom Sintered Wire Mesh Filter Element
A sintered wire mesh element built to your drawing — cylinder, disc or custom shape — with the layer stack sized for the duty,…
| Filtration rating | 1 – 200 μm |
|---|---|
| Media | Multi-layer sintered wire mesh |
| Form | To drawing — cylinder, disc or custom shape |
Woven Wire Mesh

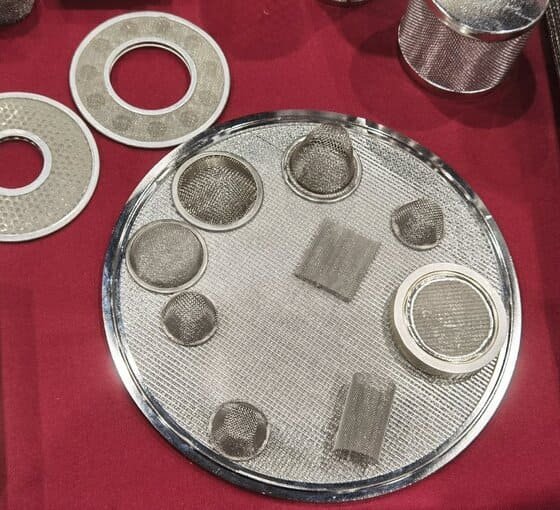

Custom Woven Wire Mesh Filter Element
A woven mesh element built to a drawing as a cylinder, disc or framed panel, 5–200 μm, with the weave named for the duty…
| Filtration rating | 5 – 200 μm |
|---|---|
| Media | Woven metal wire mesh, woven in house |
| Form | To drawing — cylinder, disc or framed panel |
Sintered Metal Felt

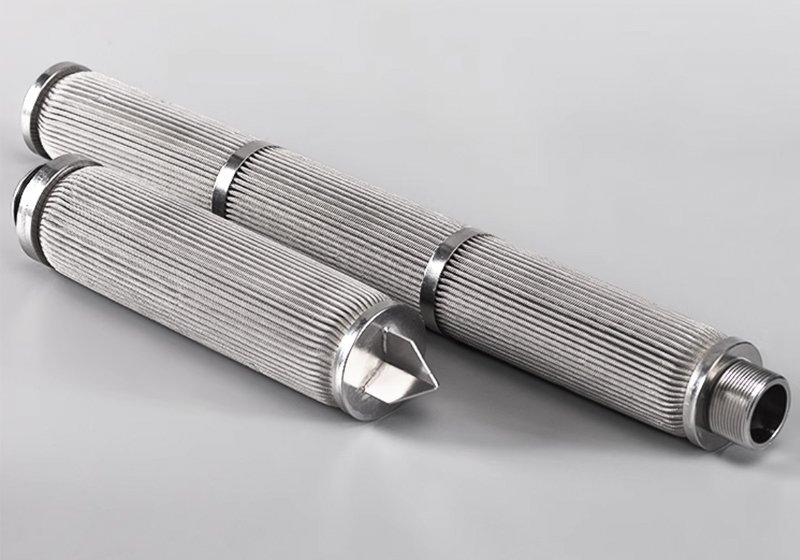

SS316L Sintered Fiber Felt Filter Cartridge
A pleated sintered metal fiber felt cartridge, 0.5–50 μm, welded to your drawing and washable — built for fine-duty filtration up to 600 °C.
| Filtration rating | 0.5 – 50 μm |
|---|---|
| Media | Sintered metal fiber felt |
| Form | Pleated cartridge · cylinder |
Sintered Wire Mesh

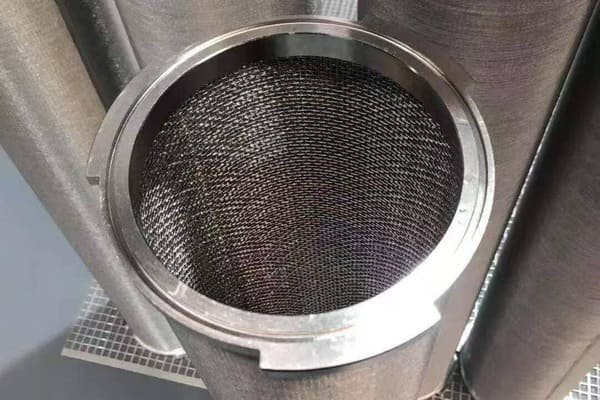

Multi-Layer Sintered Wire Mesh Filter Cartridge
A rolled multi-layer sintered wire mesh cartridge, 1–200 μm, welded to your drawing — rigid enough to backwash and stable in aperture under differential…
| Filtration rating | 1 – 200 μm |
|---|---|
| Media | Multi-layer sintered wire mesh |
| Form | Cylinder · cartridge |
Woven Wire Mesh

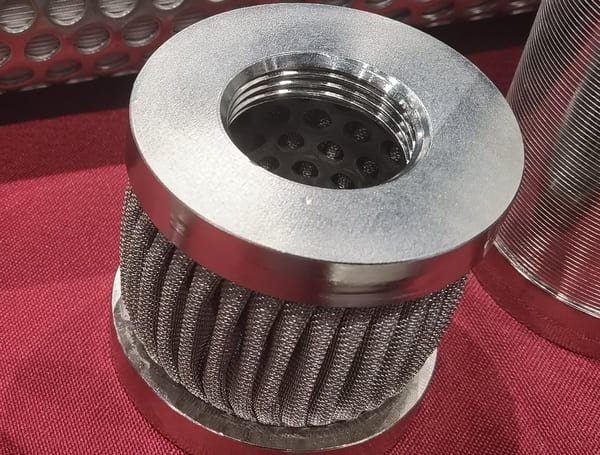

Stainless Steel Woven Wire Mesh Filter Cartridge
A rolled woven stainless mesh cartridge for coarser duties, 5–200 μm, welded to your drawing and cleaned rather than discarded — up to 600…
| Filtration rating | 5 – 200 μm |
|---|---|
| Media | Woven metal wire mesh, woven in house |
| Form | Cylinder · cartridge |
Sintered Metal Felt
Sintered Metal Fiber Felt Filter Disc
A flat sintered metal fiber felt disc rated 0.5–50 μm for stacked disc packs — washed and returned to service, in stainless, titanium and…
| Filtration rating | 0.5 – 50 μm |
|---|---|
| Media | Sintered metal fiber felt |
| Form | Disc · disc stack |
The Quote
What we need to quote it
Seven inputs settle the medium, the rating and the alloy. Send what you have and an engineer confirms the rest.
- Operating temperature, and the peaks it reaches
- The medium, and any corrosive species in it
- Operating and differential pressure
- The contaminant, and its particle size distribution if it has been analysed
- The required rating, plus any bubble point or air permeability target
- Flow rate, and the number of elements per housing
- The geometry or the OEM number of the element you run today
Industries
Other duties in this section
The rest of the twelve, each with its own systems, filter positions and medium.
Send the duty, not the part number.
Temperature, the medium and what is in it, the pressure, the flow and the alloy you run today are enough to start. An engineer names the medium, sets the rating, and says where the duty exceeds what we build. If you already have a drawing or an OEM number, send that instead: it is the faster route to a quote.
Drawing review 3–5 working days · Samples ship in 20–30 days · Production runs 30–60 days
